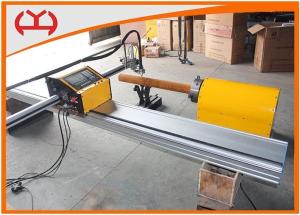

Pipe / Plate CNC Plasma Cutting Machine With Arc Voltage Height CE Standard
Description:
1. Operated easily and flexibly.
2. Without any fixed site and with random moving.
3. It is applicable to inside/outside cutting.
4. Able to cut off various metal materials of any graphs.
5. Working stability, high frequency interfere effectively plasma, lightweight portable.
5. Support two cutting modes: flame and plasma.
6. Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and operate easily.
7. Cutting has high quality, high effect level, high precision.
8. English and Chinese interface can free to convert.
Feature:
1. Both capable for panel and bottle plate of 3D lighting letters and groove letters, high precision.
2. Matching with other ad equipment (forming machine, carving machine, etc.) to form assembly line of the manufacturing advertisement letters
3. Cutting edge is tiny and tidy without any drop outs, so avoiding retiming.
4. High cutting speed & precision,automatic ARC striking, stable performance, the success ratio of ARC striking can be over 99%.
5.The whole structure is scientific, easy operating and durable. Support ARTCUT, ARTCAM, TYPE3, etc.
Technical Parameters for Pipe and Plate CNC Cutting Machine:
| 1 | Cutting shape | plate and pipe |
| 2 | LCD Display Dimension | 7.Inches |
| 3 | Effective Cutting Size | 1500*3000mm |
| 4 | Railway Size | 2000*3500mm |
| 5 | Cutting pipe diameter | 50-150mm |
| 6 | Cutting pipe wallthickness | 1-10mm |
| 7 | Cutting pipe length | 3000mm |
| 8 | Installation Mode | With combined installation and random movement, without occupying fixed site and directly cutting on steel plates |
| 9 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 10 | Flame Cutting Thickness | 5--200mm |
| 11 | Cutting Speed | 0-4000mm per minute |
| 12 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 13 | Drive Mode | Single drive |
| 14 | Cutting Mode | flame and plasma |
| 15 | Ignition device | Auto ignition device |
| 16 | File transmission | USB transmission |
| 17 | Gas Pressure | Max. 0.1Mpa |
| 18 | Oxygen Pressure | Max.0.7Mpa |
| 19 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 20 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 21 | Cutting accuracy | ±0.5mm |
| 22 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 23 | Rated Power Supply | 1500W |
| 24 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Export Experience:
We commit ourselves to build reliable partnership with our customers more than simple trading relationship so as to achieve long-term mutual benefit. Consequently, we are enjoying our excellent reputation in the international market, such as Bolivia, Honduras, Sri Lanka, Maldives, Nigeria, Iraq etc.
Cutting Samples:
